The DOHAIS system, which utilizes NUVOLT technology (without an electric heater) and is supported by Ion Plasma, produces perfect Indoor Air Quality (IAQ), making the indoor environment healthier, similar to the outdoors, free from contamination by Bacteria, Viruses, VOCs, and capable of suppressing Dust Particles and eliminating Electro Static inside the room.
Certification : INTERTEK 6280, AEROSOL, ISO 16000-6, UL 867, BIOANALYS 10824.11 B, ASHRAE 62.1
Working Principle
NUVOLT Technology

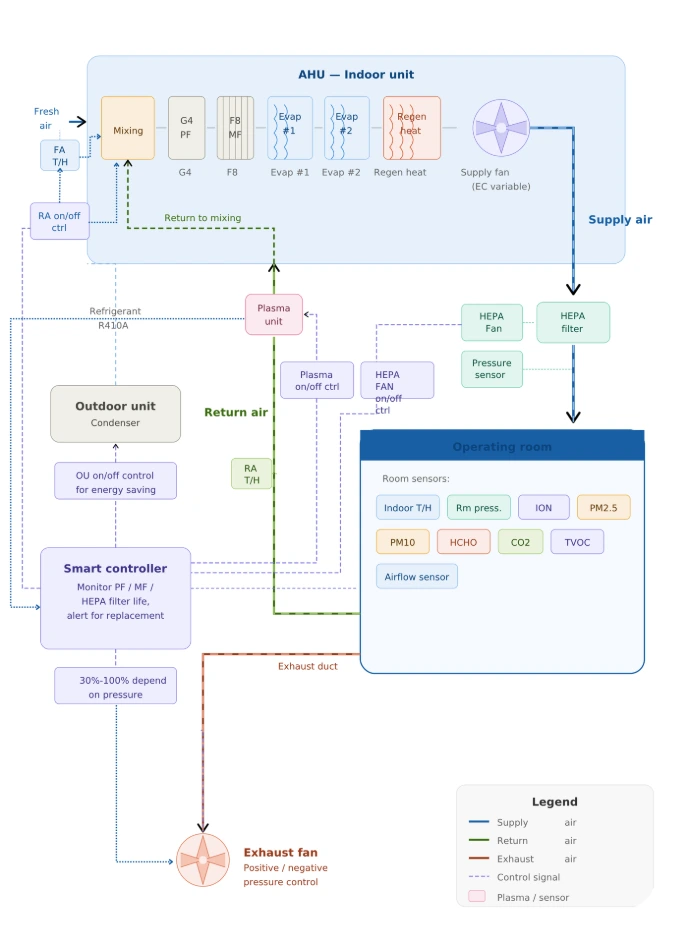

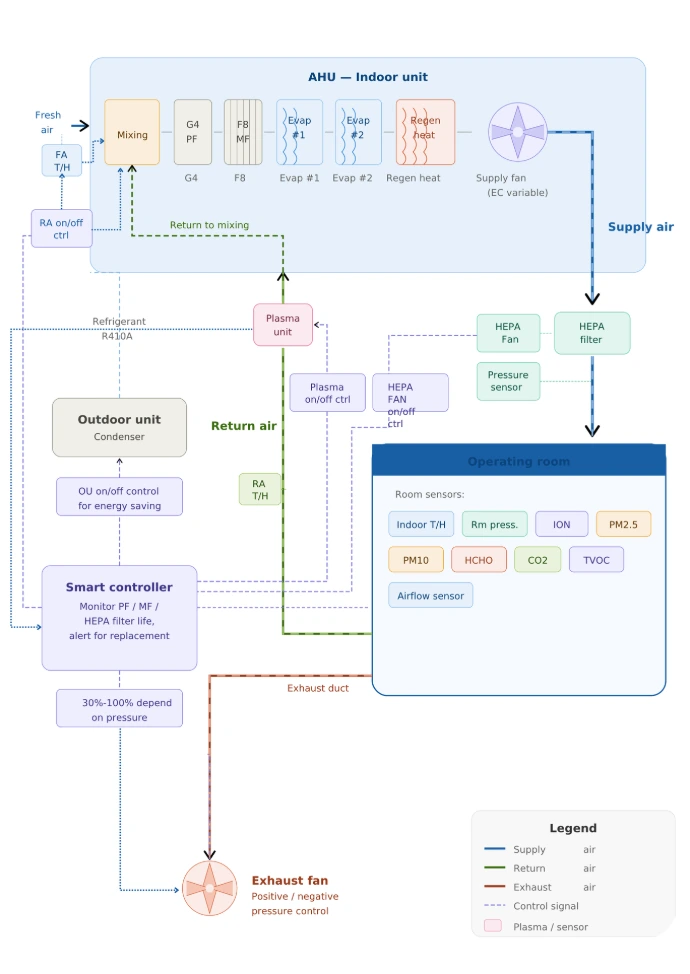

Inlet air with a temperature of 18-35 Celsius and RH 40 -100% enters the AHU Mixing Box. Before further processing, the air is sterilized from biological contaminants using DOHAIS, which generates ION plasma of 1,000-5,000 IONs. The air then passes through a pre-filter, medium filter, or HEPA filter.
Contaminated air from the OR is sterilized again and exhausted to the outside through the Microcon-600 exhaust system, which is equipped with Plasma, a complete filter set, and a variable fan (50–600 CFM1) to maintain a Negative/Positive pressure of 5–30 pascals.
The clean air is then supplied to the Operating Room (OR) through HEPA Laminaire with a flow rate of 0,125–0,75 m³/s and a temperature of 18–22°C.
Moist air is dried by NUVOLT (bypass air process), then enters the cooling coil to reduce moisture (humidity). This process is without the use of an electric heater.
Working Principle

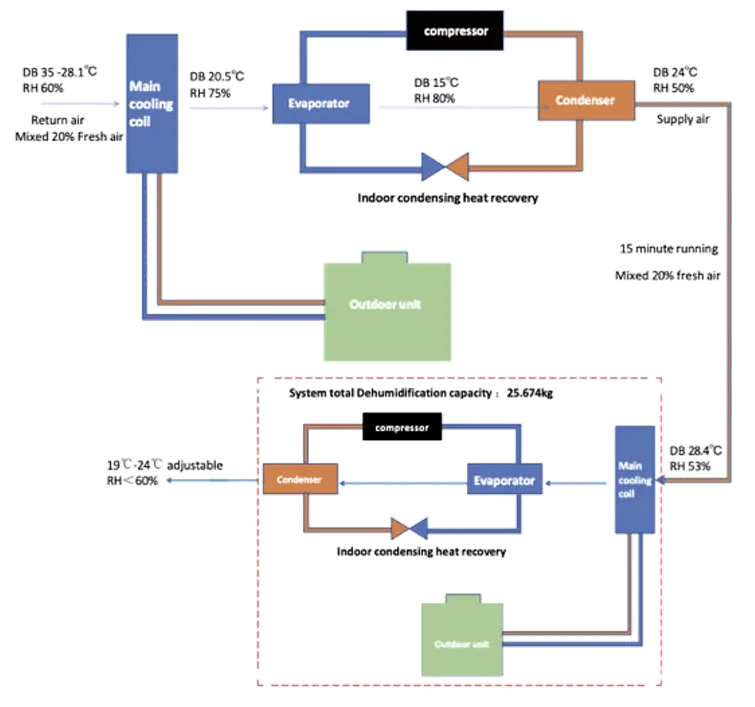

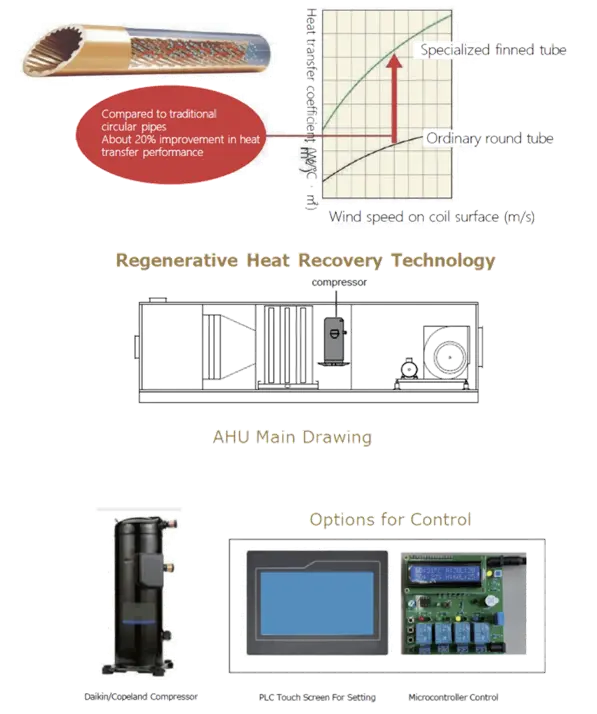

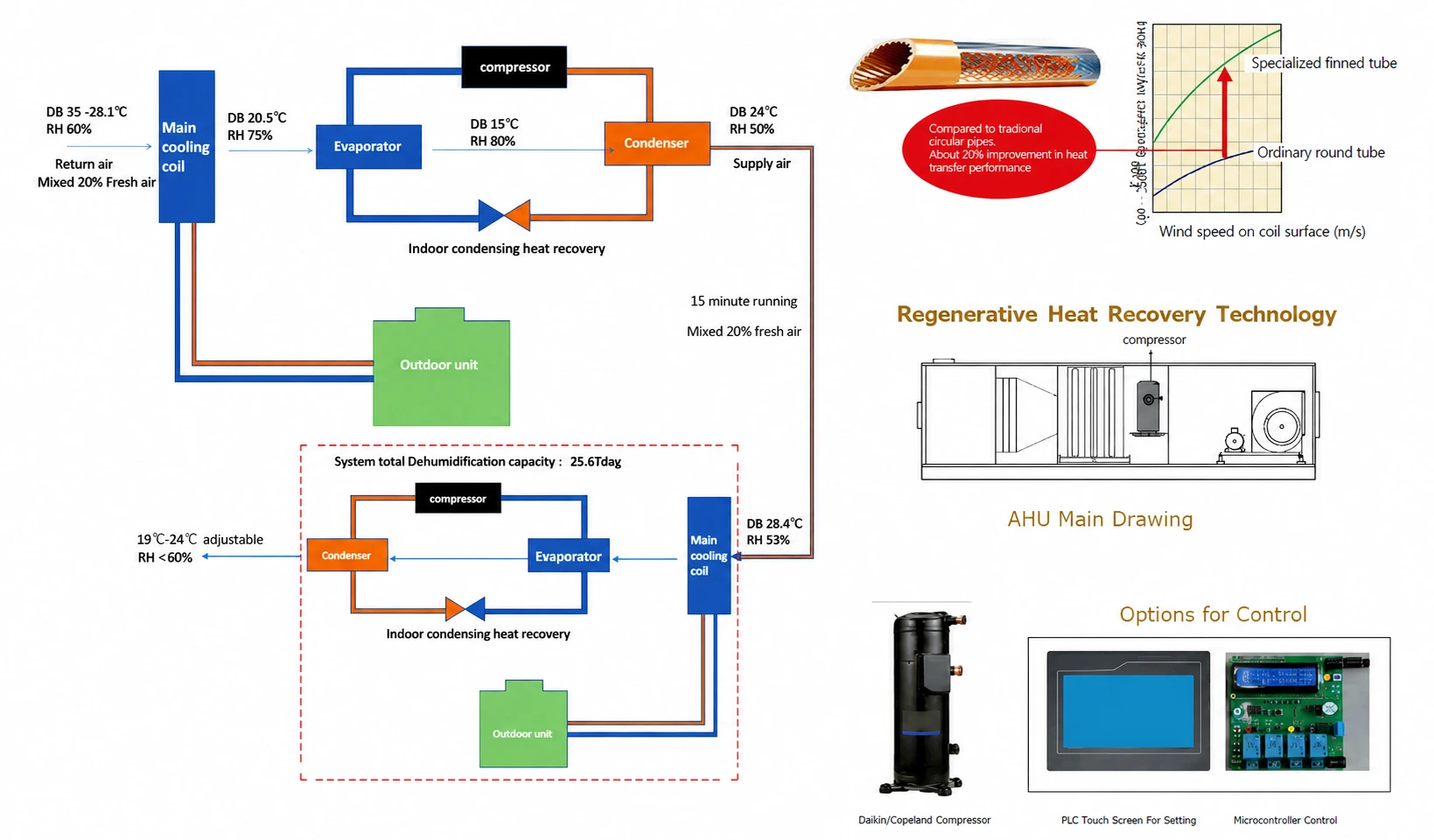

Regenerative Heat Pipe
Contaminated air from the OR is sterilized again and exhausted to the outside through the Microcon-600 exhaust system, which is equipped with Plasma, a complete filter set, and a variable fan (50–600 CFM) to maintain a Negative/Positive of 5-30 Pascals.
Clean air is supplied to the Operating Room (OR) through HEPA Laminaire with a flow rate of 0,125–0,75 m³/s and a temperature of 18–22°C.
Moist air is dried by the Regenerative Heat Pipe, then enters the cooling coil to reduce moisture (humidity). This process is without the use of an electric heater.
DOHAIS can be applied in hospitals, laboratories, pharmaceutical warehouses, food processing facilities, and cold storage environments.
